Electromagnetic Compatibility Directive (89/336 CEE)

The legislation 89/336 CEE “EMC” of the CEE council, which became law on 1.1.96, has, for the first time, set the requirements and the relative control methods for equipment that can cause electromagnetic radiation or equipment that can be effected by such electromagnetic disturbances (article 2). As these directives are affecting more and more the design and production of electrical and electronic equipment, it is important that the product is created right from the laboratory stage with the standards needed to pass the testing to allow the CE approval mark to be applied.

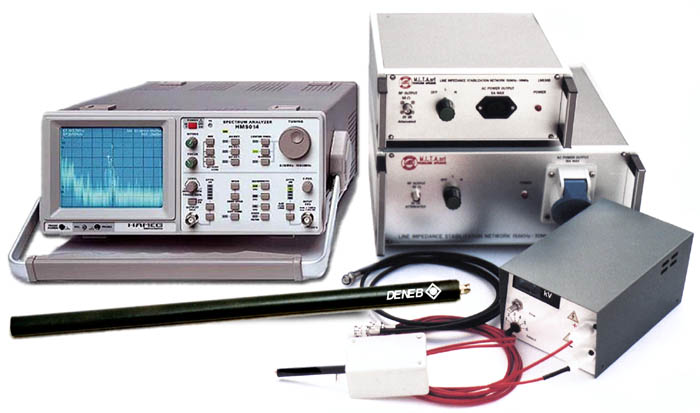

DENEB Electronics has designed an economics systems for the EMC pre-compliance measurements for use in electronic design laboratories, enabling testing of the electromagnetic compatibility to be done step by step, during the designing, according to the principle that the reliability of a product cannot be added at the end of the design work, but can only be born along with the product.

The standards that the DENEB Systems enables to be made on the equipment under test (EUT) are descript in the table on the right.

Description IEC Standard EN Standard
Radiated emissions EN55011/55022
Conducted emissions EN55011/55014/55022
Mains network harmonic emissions IEC1000-3-2 EN61000-3-2
Electrostatic dicharge immunity test IEC1000-4-2 EN61000-4-2
Electrical fast transient/burst immunity test IEC1000-4-4 EN61000-4-4
Surge immunity test IEC1000-4-5 EN61000-4-5
Voltage dips, short interruptions and voltage variations immunity tests IEC1000-4-11 EN61000-4-11

For further info and descriptions on DENEB EMC PreCompliance Measurement Systems ask to:
