16bits

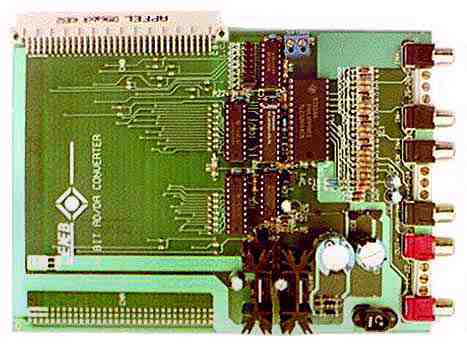

A/D - D/A board
- 14 bit resolution ADC and DAC.
- Programmable Sampling Frequency up to 19.2KHz.
- Programmable switchable capacitance Anti-Aliasing Filters.
- Standard Serial Interface for dialogue with DSP CPU.
- Chip functions in asynchronous or synchronous manner.
- Analogic Band from 100Hz to 3.8KHz.
- Maximum Analogue Signal Input Amplitude: ±3V / ±6V(peak-peak),
software programmable.
- Modular Expansion Bus for connection to the other boards.
