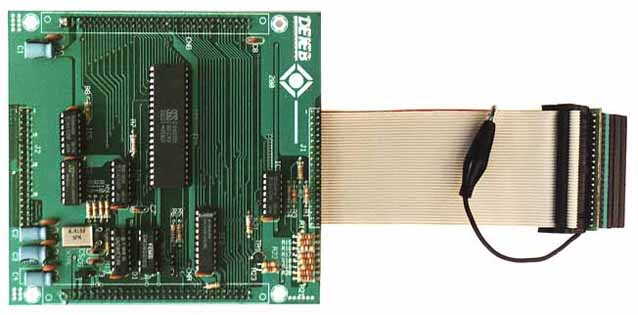

Supported micros: Z80, Z80A. 64K internal RAM, mappable externally via software with one byte resolution. Real time emulation until 10 MHz. The clock source can be internal or external and it is selectable via software. If internally, the clock can be direct or split to half.

8031/32, 80C535 Emulator POD

Supported micros: 8031/32, 80C552, 80C535, Nmos/Cmos For the microprocessor protect, the two /ALE and /PSEN signals can be buffered or not.

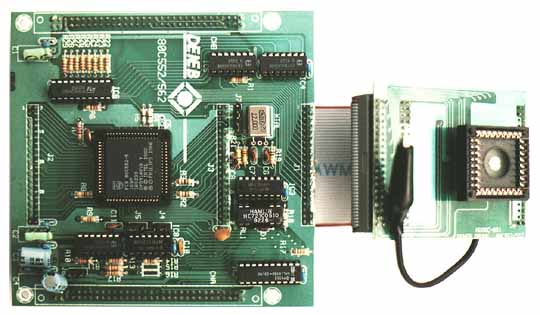

80C552 Emulator POD

Supported micro: 80C552, Nmos/Cmos. For the microprocessor protect, the two /ALE and /PSEN signals can be buffered or not.

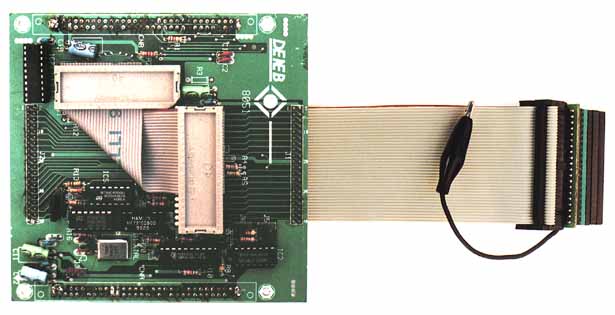

8051-2/154 Emulator POD

Supported micros: 8051/52/154, Nmos/Cmos. 16K internal RAM of emulation that can be external or internal according to the setting of the control signal/EA via software.

68HC11 A1..A8 (Expanded Multiplexed) POD

Supported micros: 68HC11 A1/A2/A3/A4/A5/A6/A7/A8. 64K RAM of internal emulation mappable externally byte for byte.

68HC11 E1..E8 (Single Chip) POD

Supported micros: 68HC11 E1/E2/E3/E4/E5/E6/E7/E8. 64K RAM of internal emulation mappable externally byte for byte.

68HC11F1 POD

Supported micro: 68HC11 F1 64K RAM of internal emulation mappable externally byte for byte.

68HC11G5 POD

Supported micros: 68HC11 G5 64K RAM of internal emulation mappable externally byte for byte.

8048/49 Emulator POD

Supported micros: 8048, 8049. 64K RAM of internal emulation mappable externally byte for byte. For the microprocessor protect, the two /ALE and /PSEN signals can be buffered or not.

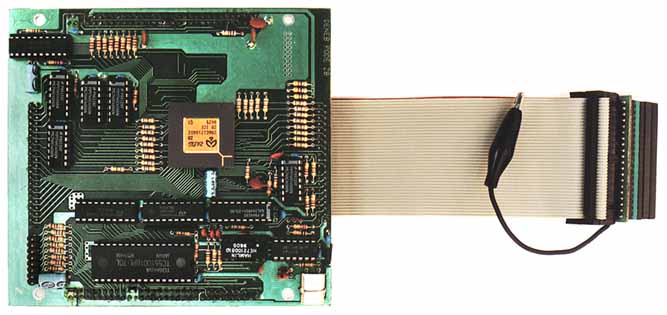

Z8 Emulator POD

Supported micro: Z8. 128K RAM of emulation: 64K of program memory mappable externally a one single byte and 64K of data memory can be setted internal or external.

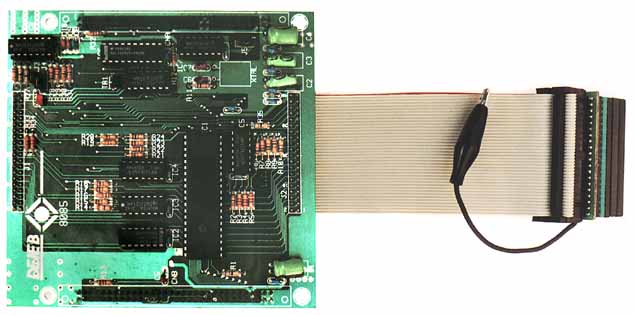

8085 Emulator POD

Supported micro: 8085. 64K RAM of internal emulation mappable externally byte for byte. The clock oscillator can be setted internally or externally. Only for P1 emulators.

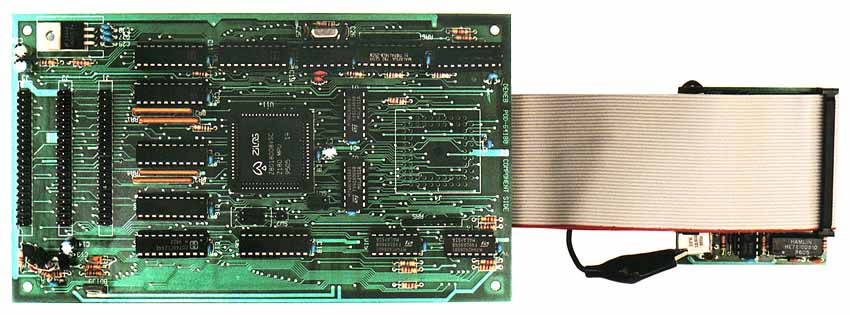

64180/Z180 Emulator POD

Supported micros: 64180, Z180. 128K internal RAM , mappable externally via software with one byte resolution. When the emulator was turned on the ram memory is all mapped internally. The clock source can be internal or external and it is selectable by means of only one switch on pod. Only for P1 emulators.

68000 Emulator POD

Supported micro: 68000.

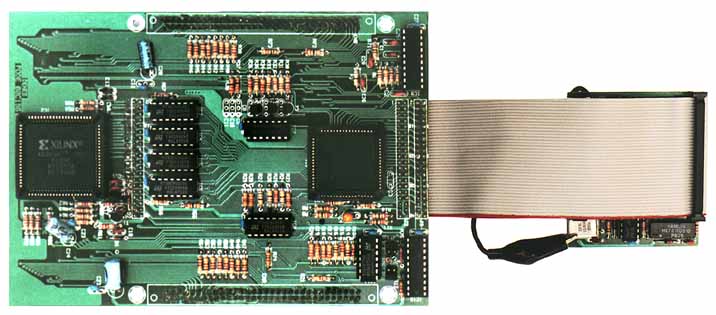

80C196 Emulator POD

Supported micro: 80C196.

AVR Emulator POD

Supported micros: AT90S8535, AT90S4434, AT90S8515, AT90S4414, AT90S4433, AT90S2333, AT90S2313. Probe for AT90S8535/AT90S4434 or AT90S4433/AT90S2333 is optional. The clock source can be internal or external and it is selectable via software.
