HVDC Control

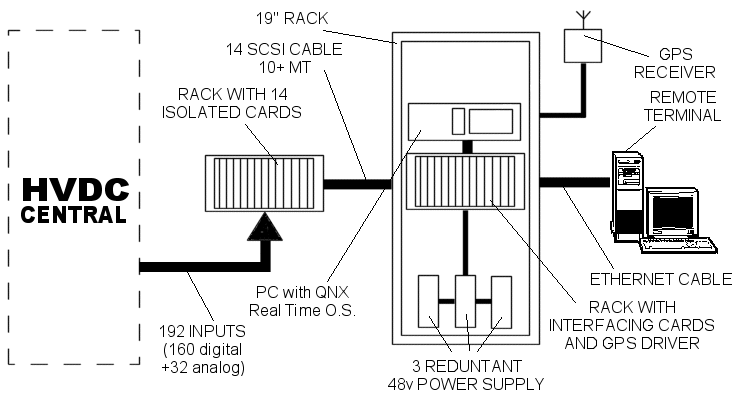

The device is mainly composed of three parts: a bottle-holder rack 19" containing 14 isolated cards with 192 inputs (160 digital and 32 analog) to high impedance (10 Mohms) and with an isolation of 2000V; a closet rack containing an industrial PC with operating system Real-Time QNX and high speed acquisition cards, a bottle-holder with 17 cards for the interfacing and the GPS receiver with precision of + / - 2uS, three redundant switching power supplies for the feeding of the system and to conclude a PC as connected remote terminal to the industrial PC through Ethernet cable.
The characteristics of the equipment can be suitable to the demands of the client. For further information
